ValveTrain Amplifiers Hand-Wired "American-Built All Tube Tone Machines"
ValveTrain builds a limited portfolio of hand wired amplifiers inspired by the most sought after vintage amps in history. They are passionate about music and helping you find and create your sound, with time tested amplifier circuits and the best American Made parts available.

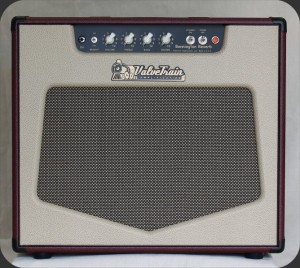

ValveTrain Bennington Reverb
1 x 12" Combo
The ValveTrain Bennington Reverb combo boasts all tube spring reverb, point to point hand wiring and delivers a club and studio friendly 20 watts RMS through an Eminence Wizard 12″ speaker. The Bright Switch creates a vibrant attack to each note without being overpowering. The All Tube Spring Reverb is tuned so that it blooms behind the note and does not overshadow the true tone of what the player wants to hear.
Inspired by the simplicity of the amp designs of the early 1960’s, the amp features three 12AX7 dual-triode preamp tubes driving the signal through an all tube spring reverb circuit and into a matched pair of 6V6 power tubes. The controls are Volume, Bass, Treble and Reverb.
The Bennington Reverb delivers a varied tonal spectrum from shimmering cleans through vintage crunch. A quick flick of the guitar volume knob controls the full range of the Bennington’s warm voice. The reverb can be adjusted to provide a touch of ambiance to full out surf tones with its lush full sonic spectrum. This amp is great for home, studio or small venues. Put a microphone in front of it and the Bennington Reverb will fill the largest of venues.
VOLTAGE: 120V
WATTAGE: 20-Watts Class-AB Fixed Bias

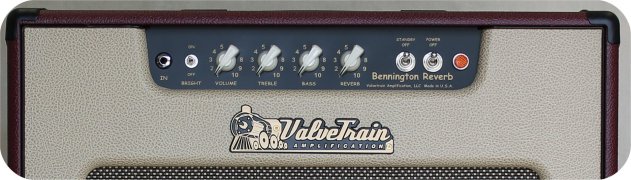

CONTROLS: Volume, Treble, Bass and Reverb
INPUTS: One- 1/4" Jack
SPEAKER JACK: Two - 1/4", 8-ohm and 4-ohm
SPEAKERS: One - 12" Eminence Wizard
MAGNET MATERIAL: Ceramic
TOTAL IMPEDANCE: Variable: 8, 4-ohm
PREAMP TUBES: 12AX7
REVERB TUBE: 12AX7
PHASE SPLITTER TUBE: 12AT7
POWER TUBES: (2) 6V6
RECTIFIER: 5AR4/GZ34
EFFECTS: BRIGHT Switch
REVERB JACK: Footswitch Jack (Footswitch not included)
POWER TRANSFORMER: American Made ClassicTone Transformers
OUTPUT TRANSFORMER: American Made ClassicTone Transformers
CABINET MATERIAL: 3/4" Baltic Birch
AMPLIFIER COVERING: Tolex
CABINET BACK: Partially Open
KNOBS: Vintage Chicken Head
AMP HEIGHT: 20"
AMP DEPTH: 11"
AMP WIDTH: 22"
AMP WEIGHT: 38 lbs.
ValveTrain Bennington Reverb 1 x 12" Combo $1599.00
- $
- In stock
ValveTrain Bennington Reverb
2 x 10" Combo
The ValveTrain Bennington Reverb combo boasts all tube spring reverb, point to point hand wiring and delivers a club and studio friendly 20 watts RMS through a 10" Eminence RamRod and a 10″ Eminence Rajun Cajun speaker. The Bright Switch creates a vibrant attack to each note without being overpowering. The All Tube Spring Reverb is tuned so that it blooms behind the note and does not overshadow the true tone of what the player wants to hear.VOLTAGE: 120V
WATTAGE: 20-Watts Class-AB Fixed Bias
CONTROLS: Volume, Treble, Bass and Reverb
INPUTS: One- 1/4" Jack
SPEAKER JACK: Two - 1/4", 8-ohm and 4-ohm
SPEAKERS: Two - 10" Eminence Ramrod and 10" Eminence Rajun Cajun
MAGNET MATERIAL: Ceramic
TOTAL IMPEDANCE: Variable: 8, 4-ohm
PREAMP TUBES: 12AX7
REVERB TUBE: 12AX7
PHASE SPLITTER TUBE: 12AT7
POWER TUBES: (2) 6V6
RECTIFIER: 5AR4/GZ34
EFFECTS: BRIGHT Switch
REVERB JACK: Footswitch Jack (Footswitch not included)
POWER TRANSFORMER: American Made ClassicTone Transformers
OUTPUT TRANSFORMER: American Made ClassicTone Transformers
CABINET MATERIAL: 3/4" Baltic Birch
AMPLIFIER COVERING: Tolex
CABINET BACK: Partially Open
KNOBS: Vintage Chicken Head
AMP HEIGHT: 20"
AMP DEPTH: 11"
AMP WIDTH: 22"
AMP WEIGHT: 38 lbs.ValveTrain Bennington Reverb 2 x 10" Combo $1649.00
- $
- In stock
