Alessandro Hand-Wired
Tweed Amplifiers
The Alessandro Tweed line of High-Quality amplifiers are built for the Musician seeking to capture the classic tones of the late '50's Fender amplifiers. The power and tone have always seperated the Tweed line of amplifiers and they are what most people think of as the "vintage-tone." They have the ability to play Rock, Blues, Jazz and Country; and when cranked-up create a very raw and roaring distortion.

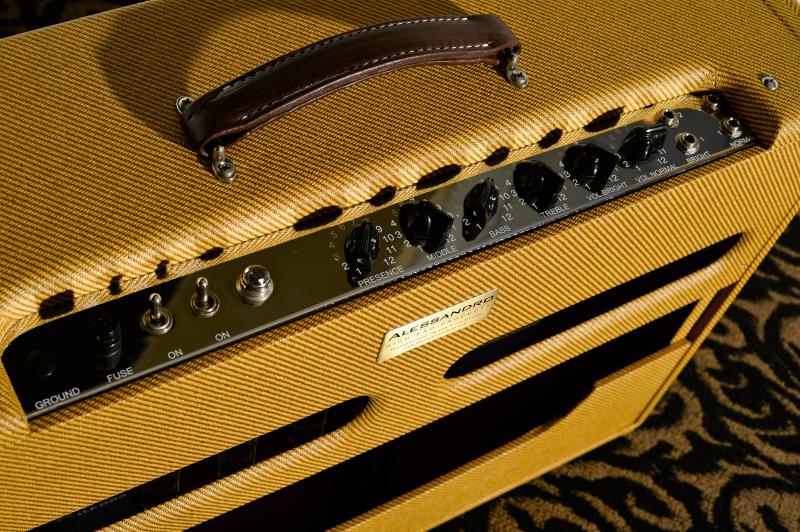

The Tweed Line is a 4x66/5881 Class AB guitar amplifier. The preamp section consists of three 12AX7 pre-amp tubes, with four 6V6's or 6L6's valves in the power section and a 5Y3 or 5AR4 rectifier tube. The control layout consists of:
- Presence
- Middle
- Bass
- Treble
- Volume Bright
- Volume Normal
- On/Off Switch
- Play/Standby Switch
- White Power-On Jewel

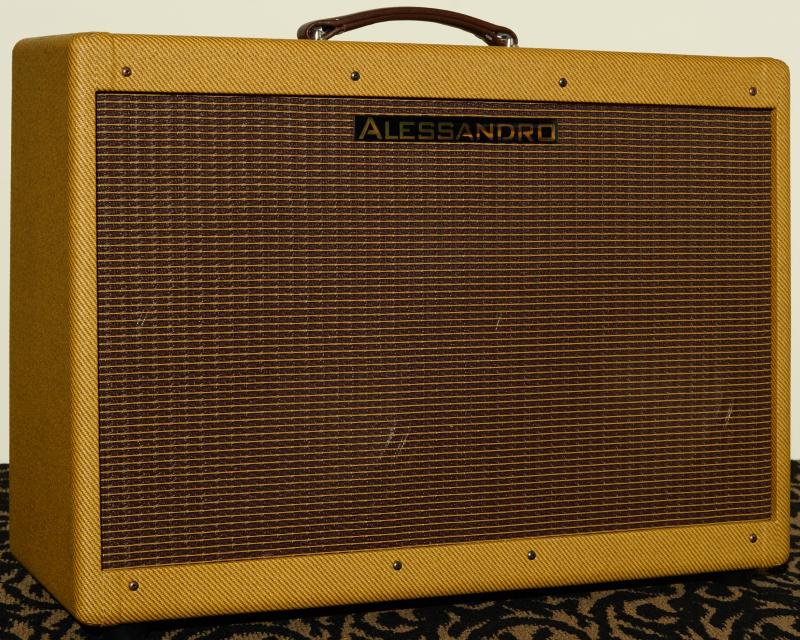

Alessandro Lo-Power Twin Tweed 40-Watt Amplfier
The Alessandro Lo-Power Twin Tweed is a 40-watt, 4x66/5881 Class AB guitar amplifier. The preamp section consists of three (3) 12AX7 tubes, with four (4) 6V6 tubes in the power section and a 5Y3 rectifier tube.
VOLTAGE: 120V
WATTAGE: 40 Watts into 8 Ohms
CONTROLS: Presence, Middle, Bass, Treble, Volume Bright and Volume
Normal
INPUTS: Four- 1/4" Switchcraft Mil-Spec Jacks, Input #2 -6db
CHANNELS: Two- NORMAL and BRIGHT
SPEAKER JACK: Two- 1/4" Parallel
TOTAL IMPEDANCE: 8 ohms
SPEAKERS: Two- 12" Eminence Alessandro SC64 (40-watts each)
MAGNET MATERIAL: Ceramic
PREAMP TUBES: (3) 12AX7
POWER TUBES: (4) 6V6
RECTIFIER: (1) 5Y3
POWER TRANSFORMER: Alessandro Made In USA
OUTPUT TRANSFORMER: Alessandro Made In USA
CABINET MATERIAL: 3/4" Finger-Jointed Solid Pine
AMPLIFIER COVERING: Nitro Lacquered Tweed
CABINET BACK: Partially Open
GRILLE CLOTH: Gold
KNOBS: Vintage Chicken Head
AMP WIDTH: 26.625"
AMP HEIGHT: 19.00"
AMP DEPTH: 10.50"
AMP WEIGHT: 54.6 lbs. Alessandro Hi-Power Twin Tweed 80-Watt Amplifier
The Alessandro Hi-Power Twin Tweed is a 80-watt, 4x66/5881 Class AB guitar amplifier. The preamp section consists of three (3) 12AX7 tubes, with four (4) 6L6 tubes in the power section and a 5AR3 rectifier tube.
VOLTAGE: 120V
WATTAGE: 80 Watts into 4 Ohms
CONTROLS: Presence, Middle, Bass, Treble, Volume Bright and Volume Normal
INPUTS: Four- 1/4" Switchcraft Mil-Spec Jacks, Input #2 -6db
CHANNELS: Two- NORMAL and BRIGHT
SPEAKER JACK: Two- 1/4" Parallel
TOTAL IMPEDANCE: 4 ohms
SPEAKERS: Two- 12" Eminence Alessandro SC59 (40-watts each)
MAGNET MATERIAL: Alnico
PREAMP TUBES: (3) 12AX7
POWER TUBES: (4) 6L6
RECTIFIER: (1) 5AR4
POWER TRANSFORMER: Alessandro Made In USA
OUTPUT TRANSFORMER: Alessandro Made In USA
CABINET MATERIAL: 3/4" Finger-Jointed Solid Pine
AMPLIFIER COVERING: Nitro Lacquered Tweed
CABINET BACK: Partially Open
GRILLE CLOTH: Gold
KNOBS: Vintage Chicken Head
AMP WIDTH: 26.625"
AMP HEIGHT: 19.375"
AMP DEPTH: 10.50"
AMP WEIGHT: 56.6 lbs.
