Dr. FrankenGroover Inc.

Port St. Lucie, FL 34953
thedoctor@drfrankengroover.com

ALESSANDRO SERVICED
'65 FENDER REISSUE BLACKFACE AMPLIFIERS

"Hand-wired Service"
"HIGH-END Components inside"

Dr. FrankenGroover and George Alessandro have teamed up to provide an ELITE Line of Hand-Wired serviced, High-End Component Amplifiers, for the Musicain who wants the best. These are not like any of the other amplifiers being sold by dealers on their website or shopping sites.

These are George Alessandro's Best.
So look for the Double Emblems to make sure you have George Alessandro's Elite Line of "Hand-wired Service" "HIGH-END Components inside"
Fender Reissue Amplifiers.

Alessandro Double Emblem
"Hand-wired Service"
"HIGH-END Components inside"

These are George Alessandro's Elite Line of Serviced Fender Reissued Amplifiers, like none other in the world. Hand-Wired by George Alessandro with the highest quality select "Alessandro" components.

Includes the Following:

Vintage-style Carbon Comp Resistors in the Signal Path
Carbon Film and Metal Film Resistors in circuits requiring stability and reliability
"Alessandro" proprietary "Made In Germany" Filtering and Bypass Caps
"Alessandro" proprietary Coupling Caps
Alessandro Custom 2W Mil-Spec Pots
Eminence GA-SC64 Speaker
Upgraded Amp One Speaker Cable
Upgraded Mil-Spec Shielded Reverb Cable
SwitchCraft Mil-Spec Jacks
PTFE/Teflon coated silver plated wire
Alessandro "Design Specific" Mil-Spec Epoxy/Glass Laminate Board
Audio-Grade Silver Eutectic Solder

Upgraded Amp One Speaker Cable

Upgraded Mil-Spec Shielded Reverb Cable

As an added feature, all dual channel amplifiers are wired like the '68 Silverface line of amps, with a Custom channel featuring a Bassman® tone circuit and a Vintage channel for traditional BlackFace tone.

Alessandro Serviced
'65 Fender Reissue Princeton Reverb
"Hand-wired Service"
"HIGH-END Components inside"
Alessandro Double Emblem "High-End Components Inside"
Vintage channel for traditional Blackface tone.
Tube-driven Fender reverb and tremolo (“vibrato”)
Fitted cover and two-button footswitch included
VOLTAGE: 120V
WATTAGE: 12 Watts into 8 Ohms
CHANNELS: One
CONTROLS: Volume, Treble, Bass, Reverb, Speed and Intensity
INPUTS: Two- 1/4" Switchcraft Mil-Spec Jacks, Input #2 -6db
SPEAKER JACK: Two- 1/4" Parallel (Run a single Internal 8 Ohm cabinet or 2- 16 Ohm Internal, External Cabinets)
TOTAL IMPEDANCE: 8 ohms
SPEAKERS: One- 10" Eminence Alessandro GA10-SC64 (20-watts each)
MAGNET MATERIAL: Ceramic
PREAMP TUBES: (3) 12AX7, (1)12AT7
POWER TUBES: (2) 6V6
RECTIFIER: (1) 5AR4
EFFECTS: Reverb
CABINET MATERIAL: 3/4" 7-Ply Birch Maple Plywood
AMPLIFIER COVERING: Black Textured Vinyl
GRILLE CLOTH: Silver
AMP WIDTH: 19.875"
AMP HEIGHT: 16.00"
AMP DEPTH: 9.50"
AMP WEIGHT: 34 lbs.
ACCESSORIES: Two Button Footswitch, Cover
Alessandro Serviced
'65 Fender Reissue Deluxe Reverb
"Hand-wired Service"
"HIGH-END Components inside"
Alessandro Double Emblem "High-End Components Inside"
Two channels -NORMAL channel with upgraded Bassman® tone circuit;
VINTAGE channel for traditional Blackface tone.
Tube-driven Fender reverb and tremolo (“vibrato”)
Fitted cover and two-button footswitch included
VOLTAGE: 120V
WATTAGE: 22 Watts into 8 Ohms
CHANNELS: Two- NORMAL channel with Bassman tone circuit and
                                   VIBRATO for traditional Blackface tone.
CONTROLS: NORMAL channel: Volume, Treble, Bass
                        VIBRATO channel: Volume, Treble, Bass, Reverb, Speed
                         and Intensity
INPUTS: Four- 1/4" Switchcraft Mil-Spec Jacks, Two NORMAL and
                   Two VIBRATO. Input #2 -6db cut.
SPEAKER JACK: Two- 1/4" Parallel (Run a single Internal 8 Ohm cabinet
                            or 2- 16 Ohm Internal, External Cabinets)
TOTAL IMPEDANCE: 8 ohms
SPEAKERS: One- 12" Eminence Alessandro GA12-SC64 (40-watts each)
MAGNET MATERIAL: Ceramic
PREAMP TUBES: (4) 12AX7, (2)12AT7
POWER TUBES: (2) 6V6
RECTIFIER: (1) 5AR4
EFFECTS: Reverb
CABINET MATERIAL: 5/8" 7-Ply Birch Plywood
AMPLIFIER COVERING: Black Textured Vinyl
GRILLE CLOTH: Silver
AMP WIDTH: 24.50"
AMP HEIGHT: 17.50"
AMP DEPTH: 9.50"
AMP WEIGHT: 42 lbs.
ACCESSORIES: Two Button Footswitch, Cover
Alessandro Serviced

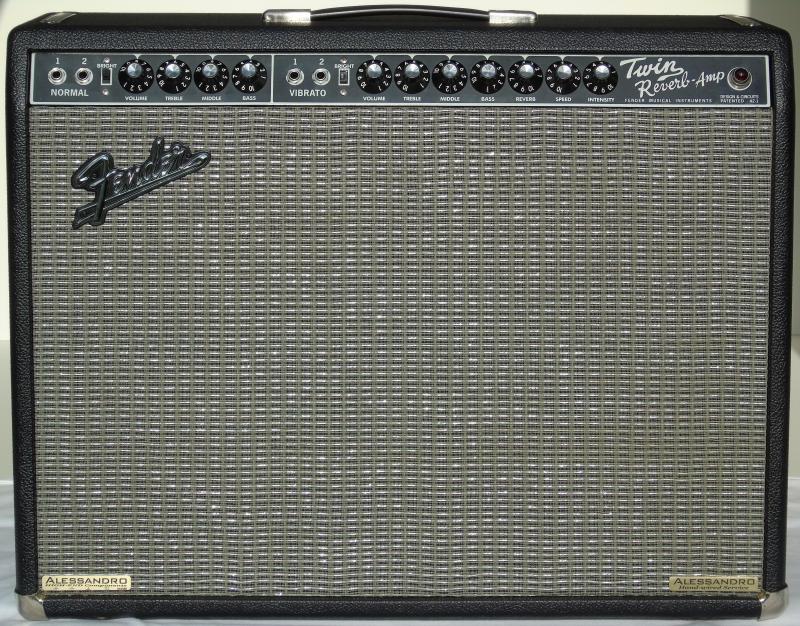

'65 Fender Reissue Twin Reverb
"Hand-wired Service"
"HIGH-END Components inside"
Alessandro Double Emblem "High-End Components Inside"
Two channels -Normal channel with upgraded Bassman® tone circuit; Vintage channel for traditional Blackface tone.
Fender reverb and tremolo (“vibrato”)
Tilt-back legs
Two-button footswitch included
VOLTAGE: 120V
WATTAGE: 85 Watts into 4 Ohms
CHANNELS: Two- NORMAL channel with Bassman tone circuit and
                                    VIBRATO for traditional Blackface tone.
CONTROLS: NORMAL channel: Bright Switch, Volume, Treble, Middle and Bass.
      VIBRATO channel: Bright Switch, Volume, Treble, Middle, Bass, Reverb,
                                       Speed and Intensity
INPUTS: Four- 1/4" Switchcraft Mil-Spec Jacks, Two NORMAL and Two VIBRATO,
               Input #2 -6db
SPEAKER JACK: Two- 1/4" Parallel (Run a single Internal 4 Ohm cabinet or 2- 8 Ohm Internal, External Cabinets)
TOTAL IMPEDANCE: 4 ohms
SPEAKERS: Two- 12" Eminence Alessandro GA12-SC64 (40-watts each)
MAGNET MATERIAL: Ceramic
PREAMP TUBES: (4) 12AX7, (2)12AT7
POWER TUBES: (4) 6L6
RECTIFIER: Solid State
EFFECTS: Reverb
CABINET MATERIAL: 5/8" 7-Ply Birch Plywood
AMPLIFIER COVERING: Black Textured Vinyl
GRILLE CLOTH: Silver
AMP WIDTH: 26.50"
AMP HEIGHT: 19.875"
AMP DEPTH: 10.50"
AMP WEIGHT: 64 lbs.
ACCESSORIES: Two Button Footswitch, Cover
Alessandro Serviced

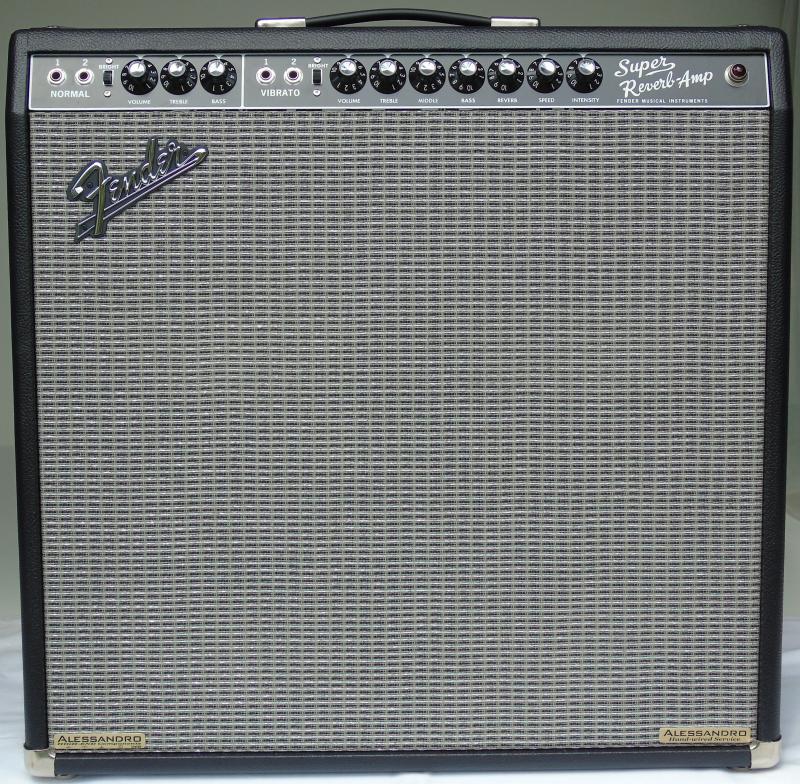

'65 Fender Reissue Super Reverb
"Hand-wired Service"
"HIGH-END Components inside"
Alessandro Double Emblem "High-End Components Inside"
Two channels -Normal channel with upgraded Bassman® tone circuit; Vintage channel for traditional Blackface tone.
Tube-driven Fender reverb and tremolo (“vibrato”)
Tilt-back legs
Two-button footswitch included
VOLTAGE: 120V
WATTAGE: 45 Watts into 2 Ohms
CHANNELS: Two- NORMAL channel with Bassman tone circuit and
                                   VIBRATO for traditional Blackface tone.
CONTROLS: NORMAL channel: Bright Switch, Volume, Treble and Bass.
                        VIBRATO channel: Bright Switch, Volume, Treble, Middle,
                          Bass, Reverb, Speed and Intensity
INPUTS: Four- 1/4" Switchcraft Mil-Spec Jacks, Two NORMAL and
                 Two VIBRATO, Input #2 -6db
SPEAKER JACK: Two- 1/4" Parallel (Run a single Internal 2 Ohm cabinet or 2- 4 Ohm Internal, External Cabinets)
TOTAL IMPEDANCE: 2 ohms
SPEAKERS: Four- 10" Eminence Alessandro GA10-SC64 (20-watts each)
MAGNET MATERIAL: Ceramic
PREAMP TUBES: (4) 12AX7, (2)12AT7
POWER TUBES: (2) 6L6
RECTIFIER: (1) 5AR4
EFFECTS: Reverb
CABINET MATERIAL: 5/8" 7-Ply Birch Plywood
AMPLIFIER COVERING: Black Textured Vinyl
GRILLE CLOTH: Silver
AMP WIDTH: 25.125"
AMP HEIGHT: 24.875"
AMP DEPTH: 10.50"
AMP WEIGHT: 65 lbs.
ACCESSORIES: Two Button Footswitch, Cover
