ALESSANDRO SERVICED
'68 FENDER REISSUE SILVERFACE AMPLIFIERS

"Hand-wired Service"
"HIGH-END Components inside"

Dr. FrankenGroover and George Alessandro have teamed up to provide an ELITE Line of Hand-Wired serviced, High-End Component Amplifiers, for the Musicain who wants the best. These are not like any of the other amplifiers being sold by dealers on their website or shopping sites.

These are George Alessandro's Best.
So look for the Double Emblems to make sure you have George Alessandro's Elite Line of "Hand-wired Service" "HIGH-END Components inside" Amplifiers.

Alessandro Double Emblem
"Hand-wired Service"
"HIGH-END Components inside"

These are George Alessandro's Elite Line of Serviced Fender Reissued Amplifiers, like none other in the world. Hand-Wired by George Alessandro with the highest quality select "Alessandro" components.

Includes the Following:

Vintage-style Carbon Comp Resistors in the Signal Path
Carbon Film and Metal Film Resistors in circuits requiring stability and reliability
"Alessandro" proprietary "Made In Germany" Filtering and Bypass Caps
"Alessandro" proprietary Coupling Caps
Alessandro Custom 2W Mil-Spec Pots
Alessandro NEO or Eminence GA-SC64 Speakers
Upgraded Amp One Speaker Cable
Upgraded Mil-Spec Shielded Reverb Cable
SwitchCraft Mil-Spec Jacks
PTFE/Teflon coated silver plated wire
Alessandro "Design Specific" Mil-Spec Epoxy/Glass Laminate Board
Audio-Grade Silver Eutectic Solder

Upgraded Amp One Speaker Cable

Upgraded Mil-Spec Shielded Reverb Cable

Alessandro Serviced

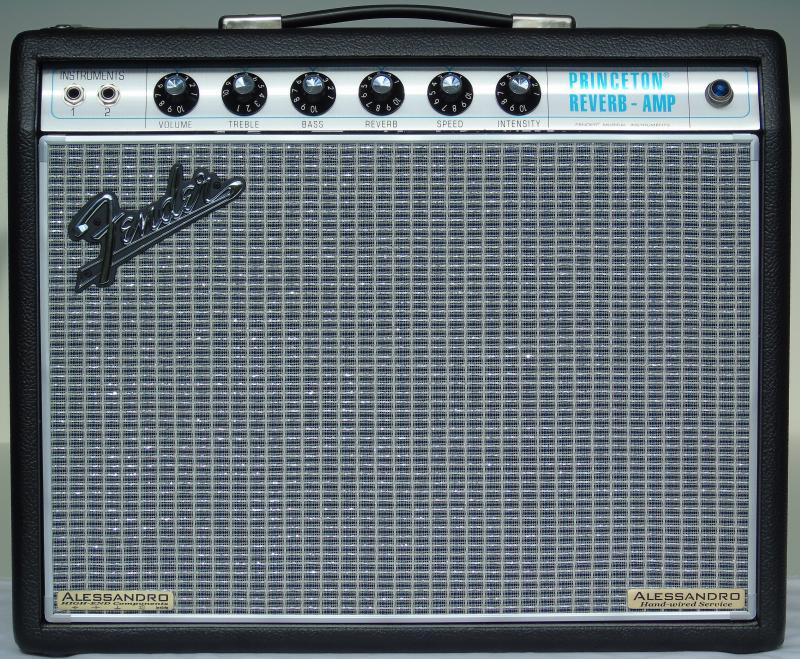

'68 Fender Reissue Princeton Reverb
"Hand-wired Service"
"HIGH-END Components inside"
Alessandro Double Emblem "High-End Components Inside"
Custom-made Schumacher® transformers
Fender tube-driven spring reverb and tremolo (vibrato)
Fitted cover and two-button footswitch included
VOLTAGE: 120V
WATTAGE: 12 Watts into 8 Ohms
CHANNELS: One
CONTROLS: Volume, Treble, Bass, Reverb, Speed and Intensity
INPUTS: Two- 1/4" Switchcraft Mil-Spec Jacks, Input #2 -6db
SPEAKER JACK: Two- 1/4" Parallel (Run a single Internal 8 Ohm cabinet or 2- 16 Ohm Internal, External Cabinets)
TOTAL IMPEDANCE: 8 ohms
SPEAKERS: One- 10" Alessandro NEO (20-watts)
MAGNET MATERIAL: Neodymium
PREAMP TUBES: (3) 12AX7, (1)12AT7
POWER TUBES: (2) 6V6
RECTIFIER: (1) 5AR4
EFFECTS: Reverb
CABINET MATERIAL: 3/4" 7-Ply Birch Maple Plywood
AMPLIFIER COVERING: Black Textured Vinyl
GRILLE CLOTH: Silver-Turquoise
AMP WIDTH: 19.875"
AMP HEIGHT: 16.00"
AMP DEPTH: 9.50"
AMP WEIGHT: 34 lbs.
ACCESSORIES: Two Button Footswitch, Cover
Alessandro Serviced

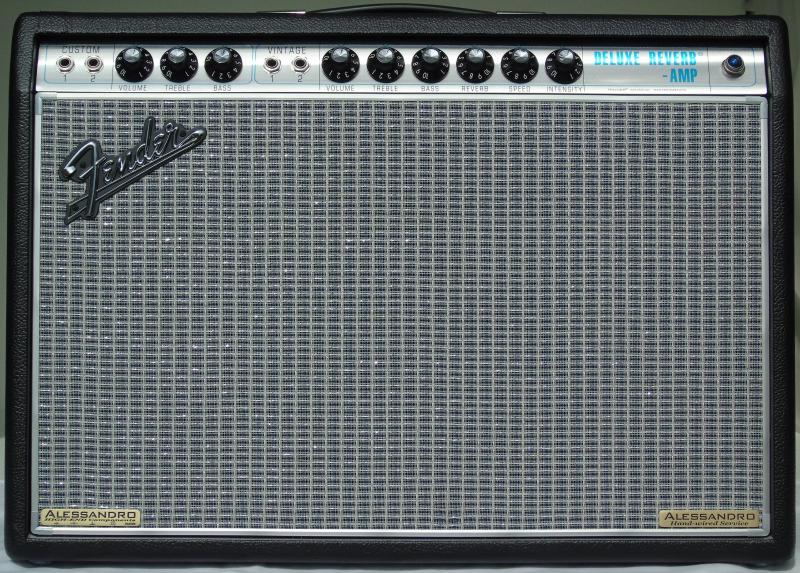

'68 Fender Reissue Deluxe Reverb
"Hand-wired Service"
"HIGH-END Components inside"
Alessandro Double Emblem "High-End Components Inside"
Two channels -CUSTOM channel with upgraded Bassman® tone circuit; VINTAGE channel for traditional Blackface tone.
Tube-driven Fender reverb and tremolo (“vibrato”)
Fitted cover and two-button footswitch included
VOLTAGE: 120V
WATTAGE: 22 Watts into 8 Ohms
CHANNELS: Two- CUSTOM channel with Bassman tone circuit and
                                   VINTAGE for traditional Blackface tone.
CONTROLS: CUSTOM channel: Volume, Treble and Bass
                        VINTAGE channel: Volume, Treble, Bass, Reverb, Speed
                         and Intensity
INPUTS: Four- 1/4" Switchcraft Mil-Spec Jacks, Two CUSTOM and
                 Two VINTAGE, Input #2 -6db
SPEAKER JACK: Two- 1/4" Parallel (Run a single Internal 8 Ohm cabinet or 2- 16 Ohm Internal, External Cabinets)
TOTAL IMPEDANCE: 8 ohms
SPEAKERS: One- 12" Alessandro NEO (40-watts)
MAGNET MATERIAL: Neodymium
PREAMP TUBES: (4) 12AX7, (2)12AT7
POWER TUBES: (2) 6V6
RECTIFIER: (1) 5AR4
EFFECTS: Reverb
CABINET MATERIAL: 5/8" 7-Ply Birch Plywood
AMPLIFIER COVERING: Black Textured Vinyl
GRILLE CLOTH: Silver-Turquiose
AMP WIDTH: 24.50"
AMP HEIGHT: 17.50"
AMP DEPTH: 9.50"
AMP WEIGHT: 42 lbs.
ACCESSORIES: Two Button Footswitch, Cover
Alessandro Serviced
'68 Fender Reissue Custom Vibrolux Reverb
"Hand-wired Service"
"HIGH-END Components inside"
Alessandro Double Emblem "High-End Components Inside"
Two channels -NORMAL channel with upgraded Bassman® tone circuit; VINTAGE channel for traditional Blackface tone.
Upgraded Alessandro "Made In USA" Power Transformer
Fender reverb and tremolo (“vibrato”)
Two-button footswitch and cover included
VOLTAGE: 120V
WATTAGE: 35 Watts into 4 Ohms
POWER TRANSFORMER: Upgraded Alessandro "Made In USA"
CONTROLS: CUSTOM channel: Bright Switch, Volume, Treble and Bass.
                        VINTAGE channel: Bright Switch, Volume, Treble, Bass,
                                                           Reverb, Speed and Intensity
CHANNELS: Two- CUSTOM channel with Bassman tone circuit and
                                   VINTAGE for traditional Blackface tone.
INPUTS: Four- 1/4" Switchcraft Mil-Spec Jacks, Two CUSTOM and
                 Two VINTAGE, Input #2 -6db
SPEAKER JACK: Two- 1/4" Parallel (Run a single Internal 4 Ohm cabinet
                                or 2- 8 Ohm Internal, External Cabinets)
TOTAL IMPEDANCE: 4 ohms
SPEAKERS: Two- 10" Eminence Alessandro GA10-SC64 (20-watts each)
MAGNET MATERIAL: Ceramic
PREAMP TUBES: (4) 12AX7, (2)12AT7
POWER TUBES: (2) 6L6
RECTIFIER: Solid State
EFFECTS: Reverb
CABINET MATERIAL: 5/8" 7-Ply Birch/Pine Plywood
AMPLIFIER COVERING: Black Textured Vinyl
GRILLE CLOTH: Silver-Turquiose
AMP WIDTH: 24.38"
AMP HEIGHT: 18.13"
AMP DEPTH: 9.63"
AMP WEIGHT: 38 lbs.
ACCESSORIES: Two Button Footswitch, Cover
Alessandro Serviced
'68 Fender Reissue Twin Reverb
"Hand-wired Service"
"HIGH-END Components inside"
Alessandro Double Emblem "High-End Components Inside"
Two channels - CUSTOM channel with upgraded Bassman® tone circuit; VINTAGE channel for traditional Blackface tone.
Fender tube-driven spring reverb and tremolo (“vibrato”)
Tilt-back legs
Two-button footswitch and cover included
VOLTAGE: 120V
WATTAGE: 85 Watts into 4 Ohms
CONTROLS: CUSTOM channel: Bright Switch, Volume, Treble, Middle
                        and Bass.
      VINTAGE channel: Bright Switch, Volume, Treble, Middle,
                          Bass, Reverb, Speed and Intensity
CHANNELS: Two- CUSTOM channel with Bassman tone circuit and
                                   VINTAGE channel for traditional Blackface tone.
INPUTS: Four- 1/4" Switchcraft Mil-Spec Jacks, Two CUSTOM and
                Two VINTAGE, Input #2 -6db
SPEAKER JACK: Two- 1/4" Parallel (Run a single Internal 4 Ohm cabinet
                                or 2- 8 Ohm Internal, External Cabinets)
TOTAL IMPEDANCE: 4 ohms
SPEAKERS: Two- 12" Alessandro NEO (40-watts each)
MAGNET MATERIAL: Neodymium
PREAMP TUBES: (4) 12AX7, (2)12AT7
POWER TUBES: (4) 6L6
RECTIFIER: Solid State
EFFECTS: Reverb
CABINET MATERIAL: 5/8" 7-Ply Birch/Pine Plywood
AMPLIFIER COVERING: Black Textured Vinyl
GRILLE CLOTH: Silver-Turquiose
AMP WIDTH: 26.150"
AMP HEIGHT: 19.875"
AMP DEPTH: 10.375"
AMP WEIGHT: 64 lbs.
ACCESSORIES: Two Button Footswitch, Cover
