Alessandro Hand-Wired Crossbred Mutt
The Crossbred Mutt is a simple, high quality amp, built for Musicians to just plug in and play. It is a combination of a Fender, Marshall and Vox with the abilities to achieve everything from pure clarity to the dirtiest of distortion. An amp that spans the genres of music from Heavy Metal, Rock, through Blues, to Jazz and Country.
The Mutt is a 40-watt, 2x66/5881 Class AB guitar amplifier. The preamp section consists of one 12AT7 reverb tube, two 12AX7 pre-amp and phase-inverter tubes, with two 6L6's valves in the power section. The control layout consists of:
- Volume
- Reverb
- Treble
- Middle
- Bass
- Final Output Control (100% to 5% output power)
- On/Off Switch
- Play/Standby Switch
- Red Power-On Jewel
It's available in the following configurations:
40-Watt 1x12 Combo, 40-Watt Head Only, 1x12 Cabinet,
2x10 Cabinet, 2x12 Cabinet and 4x12 Cabinet.
Scroll down to see the Crossbred Mutt Line
of amplifiers listed Below.
Learn more about the Alessandro Crossbred Mutt Amplifier in the following magazines articles and YOUTUBE Videos:
Guitar-Bass.net- Letters from America: Alessandro Crossbred Mutt
YouTube CrossBred Mutt Demo by Mikey Cunningham for Alessandro Amps
Guitar Player Magazine Oct. 2016- Roundup: Four New Combos and Heads Reviewed Alessandro Crossbred Mutt
Crossbred Mutt 40-Watt 1X12 Combo Amplifier
Available with 12" Alessandro NEO Neodymium Speaker or
12" Eminence Alessandro GA12-SC64 Ceramic Speaker
VOLTAGE: 120V
WATTAGE: 40 Watts
CONTROLS: Volume, Treble, Middle, Bass, Reverb and Power (Final Output Control)
Final Output Control Knob- Regulates power from 5%-100%
INPUTS: ONE (1/4", with two channel switch)
CHANNELS: Two Channel Switch - JANGLY and CREAMY
SPEAKER JACK: One - 1/4" Internal
SPEAKERS: One - 12" Alessandro NEO or One- 12" Eminence Alessandro GA12-SC64
MAGNET MATERIAL: Neodymium or Ceramic
TOTAL IMPEDANCE: 8 ohms
PREAMP TUBES: (2) 12AX7, (1) 12AT7
POWER TUBES: (2) 6L6
RECTIFIER: Solid State
POWER TRANSFORMER: Alessandro Made In USA
OUTPUT TRANSFORMER: Alessandro Made In USA
CABINET MATERIAL: 3/4" Solid Pine
AMPLIFIER COVERING: Black Textured Vinyl Tolex
CABINET BACK: Partially Open
GRILLE CLOTH: Gold
KNOBS: Vintage Chicken Head
AMP HEIGHT: 15.75"
AMP DEPTH: 10.5"
AMP WIDTH: 21.875"

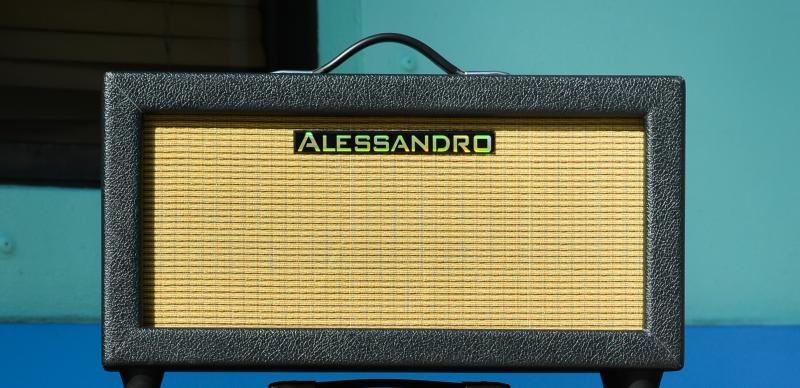

AMP WEIGHT: NEO- 32 lbs., SC64- 35.5 lbs. Crossbred Mutt 40-Watt Head
With 4, 8 or 16 ohm switchable output.
VOLTAGE: 120V
WATTAGE: 40 Watts
CONTROLS: Volume, Treble, Middle, Bass, Reverb and Power (Final Output Control)
Final Output Control Knob- Regulates power from 5%-100%
INPUTS: ONE (1/4", with two channel switch)
CHANNELS: Two Channel Switch- JANGLY and CREAMY
SPEAKER JACK: Two - 1/4" Parallel
SELECTABLE IMPEDANCE: 4, 8, 16 ohms
PREAMP TUBES: (2) 12AX7, (1) 12AT7
POWER TUBES: (2) 6L6
RECTIFIER: Solid State
POWER TRANSFORMER: Alessandro Made In USA
OUTPUT TRANSFORMER: Alessandro Made In USA
CABINET MATERIAL: 3/4" Solid Pine
AMPLIFIER COVERING: Black Textured Vinyl Tolex
GRILLE CLOTH: Gold
KNOBS: Vintage Chicken Head
AMP HEIGHT: 12"
AMP WIDTH: 21.750"
AMP DEPTH: 9.250"
AMP WEIGHT: 27 lbs.

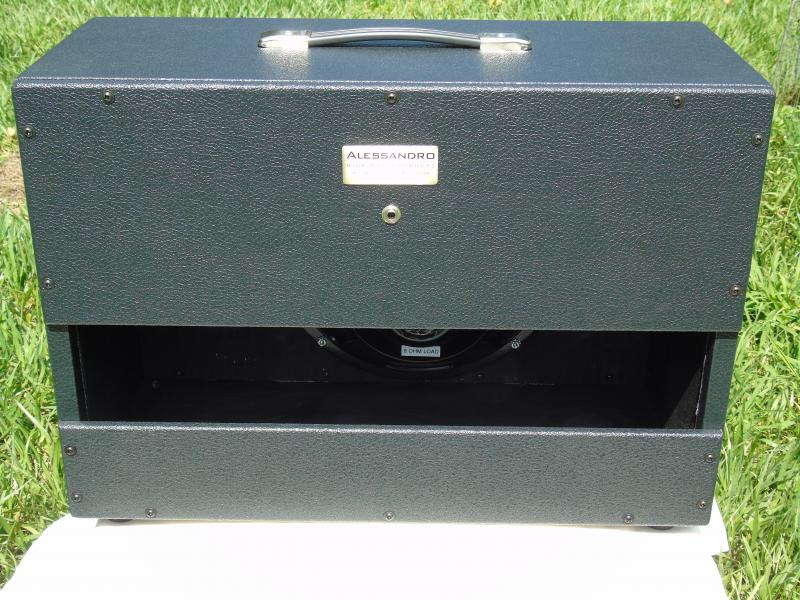

Crossbred Mutt 1x12 Cabinet
Available with 12" Alessandro NEO Neodymium Speaker or
12" Eminence Alessandro GA12-SC64 Ceramic Speaker
Crossbred Mutt 40-Watt Head shown on CB Mutt 1x12 Cabinet.
SPEAKERS: One - 12" Alessandro NEO or One- 12" Eminence Alessandro GA12-SC64
MAGNET MATERIAL: Neodymium or Ceramic
TOTAL IMPEDANCE: 8 ohms
POWEWR HANDLING: 40 Watts
CABINET MATERIAL: 3/4" Finger-Jointed Solid Pine
AMPLIFIER COVERING: Black Textured Vinyl Tolex
CABINET BACK: Partially Open
GRILLE CLOTH: Gold
AMP HEIGHT: 17.250"
AMP WIDTH: 23.625"
AMP DEPTH: 10.750"
AMP WEIGHT: NEO- 20 lbs., SC64- 23.5 lbs.
Crossbred Mutt 2x10 Cabinet
Available with 10" Alessandro NEO Neodymium Speaker or
10" Eminence Alessandro GA12-SC64 Ceramic SpeakerSPEAKERS: Two- 10" Alessandro NEO or Two- 10" Eminence Alessandro GA10-SC64
MAGNET MATERIAL: Neodymium or Ceramic
TOTAL IMPEDANCE: 16 ohms
POWEWR HANDLING: 40 Watts
CABINET MATERIAL: 3/4" Solid Pine
AMPLIFIER COVERING: Black Textured Vinyl Tolex
CABINET BACK: Partially Open
GRILLE CLOTH: Gold
AMP HEIGHT: 17.250"
AMP WIDTH: 23.625"
AMP DEPTH: 10.750"
AMP WEIGHT: NEO- 19 lbs., SC64- 22.5 lbs.

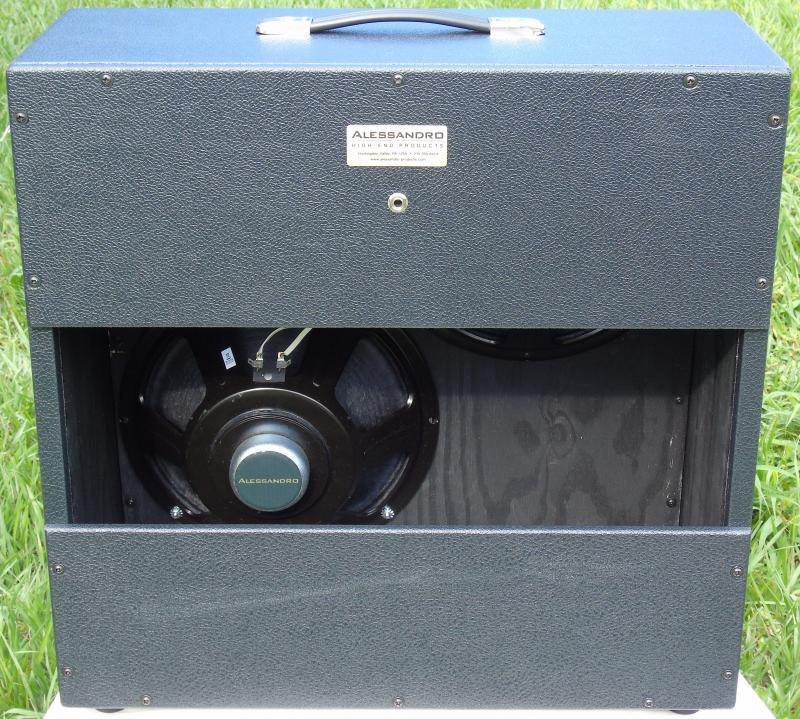

Crossbred Mutt 2x12 Cabinet
Available with 12" Alessandro NEO Neodymium Speaker or
12" Eminence Alessandro GA12-SC64 Ceramic Speaker
SPEAKERS: Two - 12" Alessandro NEO or Two 12" Eminence Alessandro GA12-SC64
MAGNET MATERIAL: Neodymium or Ceramic
TOTAL IMPEDANCE: 8 ohms or 16 ohms configuration available
POWEWR HANDLING: 80 Watts
CABINET MATERIAL: 3/4" Solid Pine
AMPLIFIER COVERING: Black Textured Vinyl Tolex
CABINET BACK: Partially Open
GRILLE CLOTH: Gold
AMP HEIGHT: 23.375"
AMP WIDTH: 23.625"
AMP DEPTH: 11.250"
AMP WEIGHT: NEO- 27 lbs., SC64- 35 lbs.

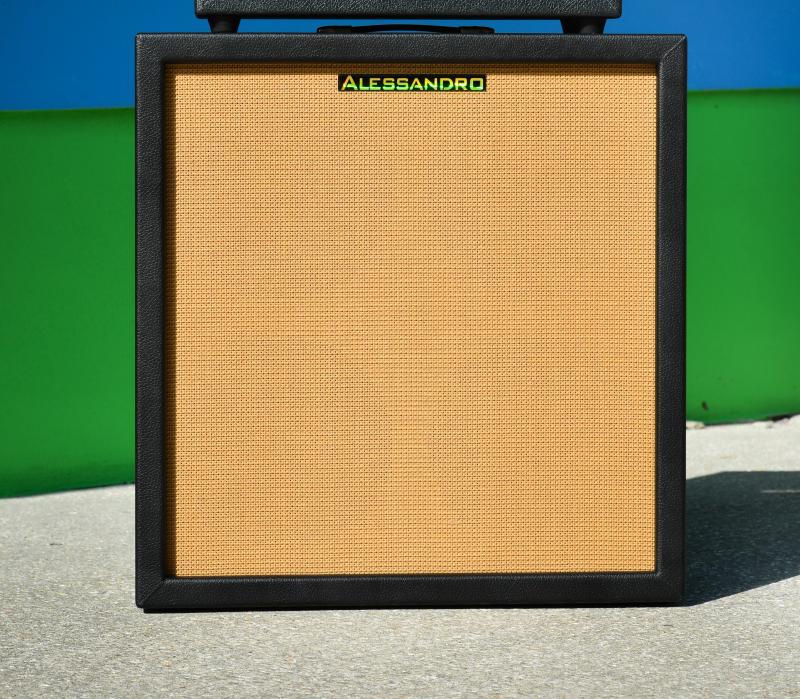

Crossbred Mutt 4x12 Closed-Back Cabinet
Available with 12" Alessandro NEO Neodymium Speaker or
12" Eminence Alessandro GA12-SC64 Ceramic Speaker
Crossbred Mutt 40-Watt Head shown on CB Mutt 4x12 Cabinet.
SPEAKERS: Four - 12" Alessandro NEO or Four- 12" Eminence Alessandro GA12-SC64
MAGNET MATERIAL: Neodymium or Ceramic
TOTAL IMPEDANCE: 16 ohms
POWEWR HANDLING: 160 Watts
CABINET MATERIAL: 3/4" Solid Pine
AMPLIFIER COVERING: Black Textured Vinyl Tolex
CABINET BACK: Closed Back
GRILLE CLOTH: Gold
AMP HEIGHT: 29.375"
AMP WIDTH: 28.125"
AMP DEPTH: 11.250"
AMP WEIGHT:NEO- 47.5 lbs., SC64- 63.5 lbs.
