Alessandro Hand-Wired Amplifiers

What's Inside?

Vintage-style Carbon Comp Resistors used throughout the signal path for the warmest sound quality and that classic vintage tone. Carbon Film and Metal Film Resistors are used in circuits requiring greater stability and reliability.

"Alessandro" proprietary "Made In Germany" Filtering and Bypass capacitors. These are manufactured exclusively for George Alessandro by Mundorf of Germany, to the highest quality standards on the planet.

Proprietary "Alessandro" Foil/Mylar Coupling capacitors that are custom made in the USA for an authentic but upgraded sound, with Silver Mica Capacitors used in the signal path where needed.

Alessandro Custom 2W Mil-Spec Pure-Carbon Audio Pots are the finest on the planet and have their own proprietary taper, which allows for smoother accurate adjustments.

Eminence Alessandro GA-SC64 or Alessandro NEO Neodymium speakers with upgraded Alessandro manufactured Amp One speaker cable leads. Also, Custom Made In-House, Mil-Spec Teflon coated, Silver clad Copper wire, shielded reverb leads.

SwitchCraft Mil-Spec jacks and PTFE/Teflon coated silver plated wire soldered with audio-grade Silver Eutectic Solder.

All this is attached to a "Design Specific" Mil-Spec Epoxy/Glass Laminate board, engineered by George Alessandro to be vintage-correct, but upgraded for the shortest signal path, lead wires and minimal connections.

What's Inside?
"ALESSANDRO'S" INSIDE!

Alessandro Junior Executive
The Alessandro Junior Executive is a simple, high quality amp, built for the Recording Studio or small intimate venues. Its 4-watts and 10" NEO speaker are perfect for travel; but don't let its size fool you, this is no runt of the litter, this is a Jack Russell Terrier. Watch out, because This Dog Has BITE. From Fender Clean to Marshall Gain, this amp can do it all.
The Runt is a 4-watt, 1x66/5881 Class A guitar amplifier. The preamp section consists of one 12AX7 pre-amp tube, with one 6V6 valve in the power section and a 5A4 rectifier tube. The control layout consists of:
- Volume
- Tone
- On/Off switch
It's available in the following configurations:
4-Watt 1x10 Combo
To Learn more about the Alessandro Junior Executive line of amplifiers click here.

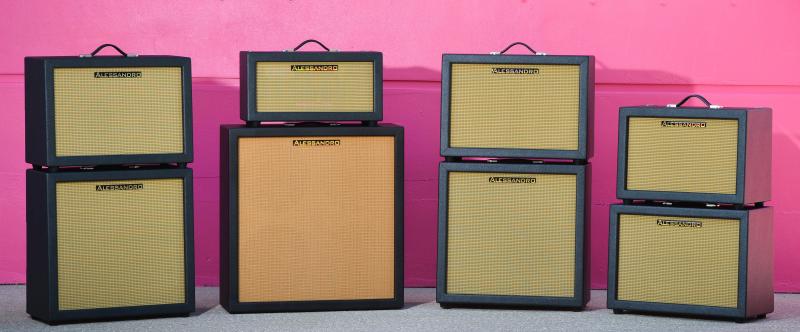

Alessandro Crossbred Mutt
The Alessandro Crossbred Mutt is a high quality amp, built for Musicians to just plug in and play. It is a combination of a Fender, Marshall and Vox; with the abilities to achieve everything from pure clarity to the dirtiest of distortion. An amp that spans the genres of music, from Heavy Metal Rock, through Blues, to Jazz and Country.
The Mutt is a 40-watt, 2x66/5881 Class AB guitar amplifier. The preamp section consists of one 12AT7 reverb tube, two 12AX7 pre-amp and phase-inverter tubes, with two 6L6's valves in the power section. The control layout consists of:
- Reverb
- Final Output Control
- (100% to 5% output power)
- Volume
- Treble
- Middle
- Bass
- Jangly/Creamy switch
- Stand-by switch and
- On/Off switch
It's available in the following configurations:
40-Watt 1x12 Combo, 40-Watt Head, 1x12 Cabinet, 2x10 Cabinet,
2x12 Cabinet and 4x12 Cabinet.
To Learn more about the Crossbred Mutt line of amplifiers
click here.
Alessandro Tweed Amplifiers
The Alessandro Tweed line of High-Quality amplifiers are built for the Musician seeking to capture the classic tones of the late '50's Fender amplifiers. The power and tone have always seperated the Tweed line of amplifiers and they are what most people think of as the "vintage-tone." They have the ability to play Rock, Blues, Jazz and Country; and when cranked-up, create a very raw roaring distortion. The control layout consists of:
- Presence
- Middle
- Bass
- Treble
- Volume Bright
- Volume Normal
- Stand-by switch
- On/Off switch
It's available in the following configurations:
2x12 40-Watt Combo and 2x12 80-Watt Combo.
To Learn more about the Alessandro Tweed line of amplifiers click here.

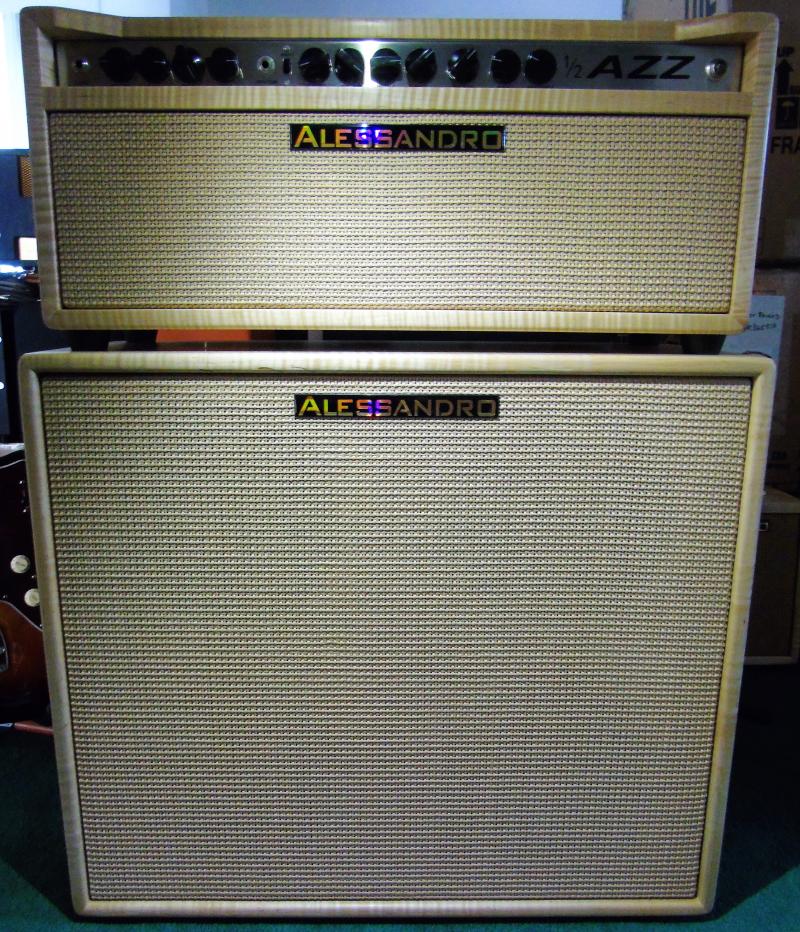

Alessandro 1/2AZZ Amplifiers
The Alessandro 1/2AZZ line of High-Quality amplifiers are based on the Dumble line of amplifiers. When I asked George Alessandro what his intentions were when building this amp he repleid, "It answers what players want from their Dumble amps, without giving up vintage style musicality." With plenty of Top and Bottom, that makes for a powerful, clear sounding amp.
The 1/2AZZ is currently being showcased on the road by Derek Trucks. The control layout consists of:
- Volume
- Treble
- Middle
- Bass
- Reverb
- Speed
- Presence
- Bright switch
- Stand-by switch
- On/Off switch
To Learn more about Alessandro 1/2AZZ Amplifiers click here.
